Remoran Wave 3GD

Remoran Wave 3GD sales package
Sailboat's optimal speed range: 5-15 knots
Includes outboard unit, charger, 20,6cm long rail, turbine and
mounting accessories.
Warranty 2 years

Custom order, delivery time approximately two weeks.

2,985.68 € 2985.68 EUR 2,985.68 € VAT 25,5%

2,379.03 €

~~2,379.03 €~~ 2,379.03 € without taxes

This combination does not exist.

The final price and the VAT of the Product are determined by country of delivery and are displayed before the order confirmation.

Add to cart

Remoran Wave 3GD includes

Remoran Wave 3GD outboard unit with fixed cable (2m), female connector and cap
Remoran Charger GD 300W -electronic charger
Generator cable 2m with male connector and cap
Mounting rail
Mounting accessories kit
Ferrite filter
Mounting instructions
Warranty 2 years

Weight: 11 Kg
Dimensions: 774 mm x 445 mm x 135 mm

Technical Details

Remoran Wave 3GD Outboard unit

Length of outboard unit	680 - 980 mm
Weight of outboard unit	7,5 kg
Maximum operation speed	20 knots*

* Charger damage may occur at speeds greater than stated unless Protection Relay PR-01 is fitted.

Remoran Charger GD 300W

Electronic features:
Maximum allowable input voltage	35VAC (3-phase)
Output voltage	12V/24V
Output current	max 25A
Output power	max 300W
Standby power consumption	20mA
Operating temperature range	-10⁰C - +55⁰C
Compatible batteries	Pb, AGM, Lithium
Charging data collection	Power, temperature, RPM etc.
Bluetooth communication	Bluetooth low energy
Mechanical features:
Dimensions	53 x 203 x 105 mm
Weight	620g

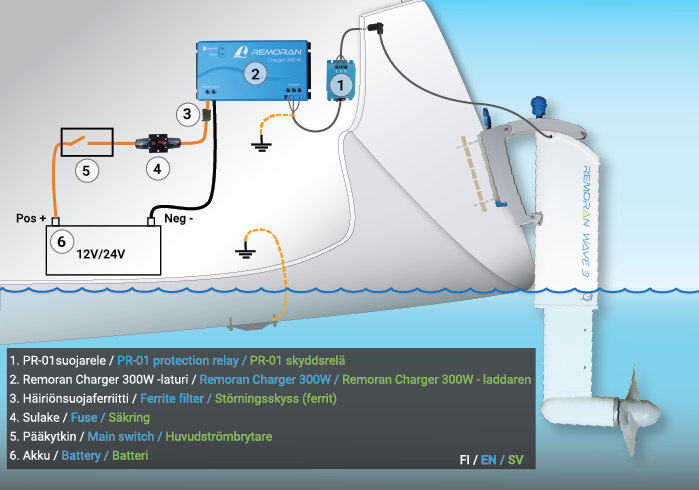

Installation

1. PR-01 Protection Relay
2. Remoran Charger 300W
3. Ferrite filter
4. Fuse (40A)
5. Main switch
6. Battery
For more information on installation, see the user guide. You can find it on our website: https://remoran.eu/downloads.html

Performance

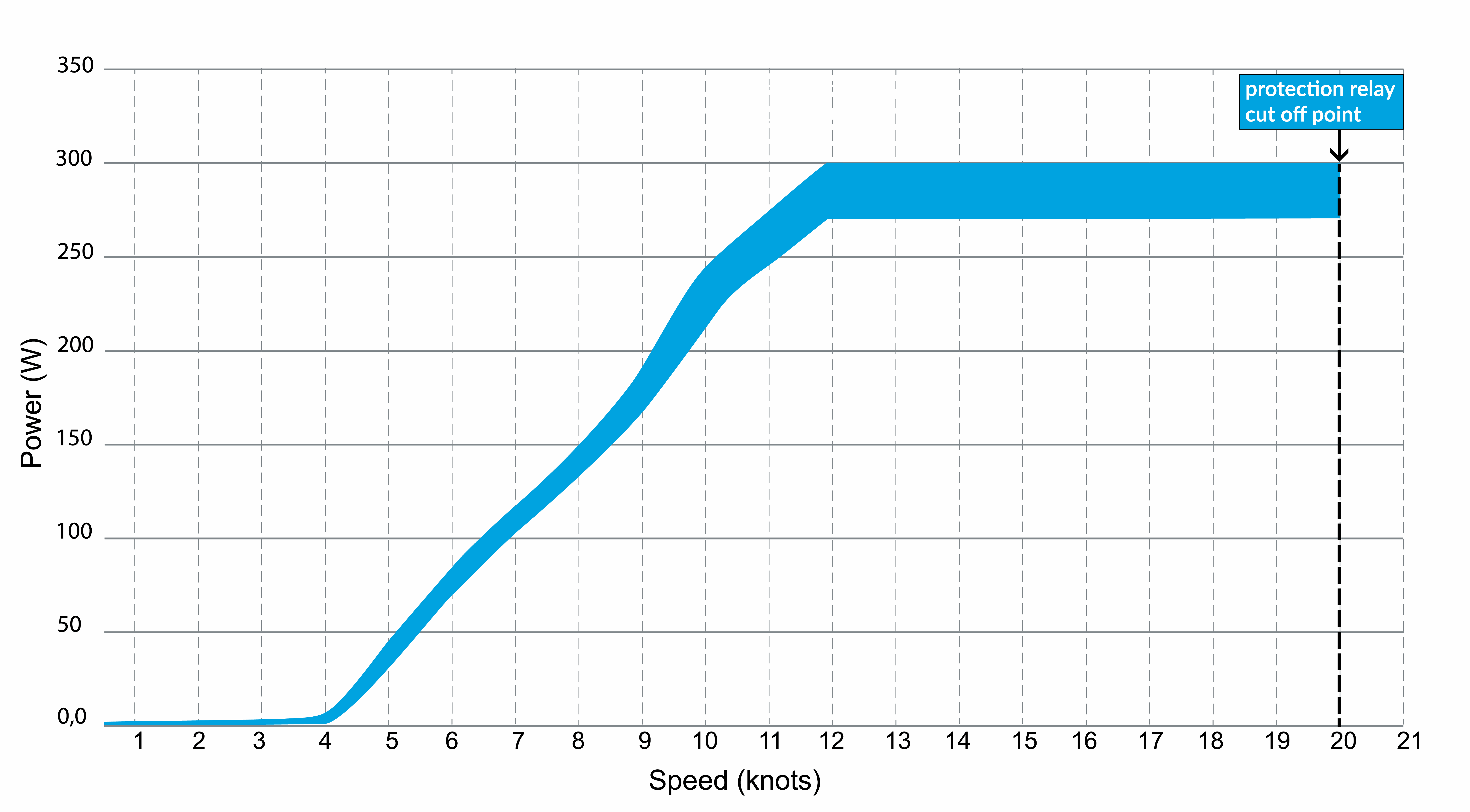

Power of the Remoran Wave 3GD - hydrogenerator at different speeds
Power at different speed

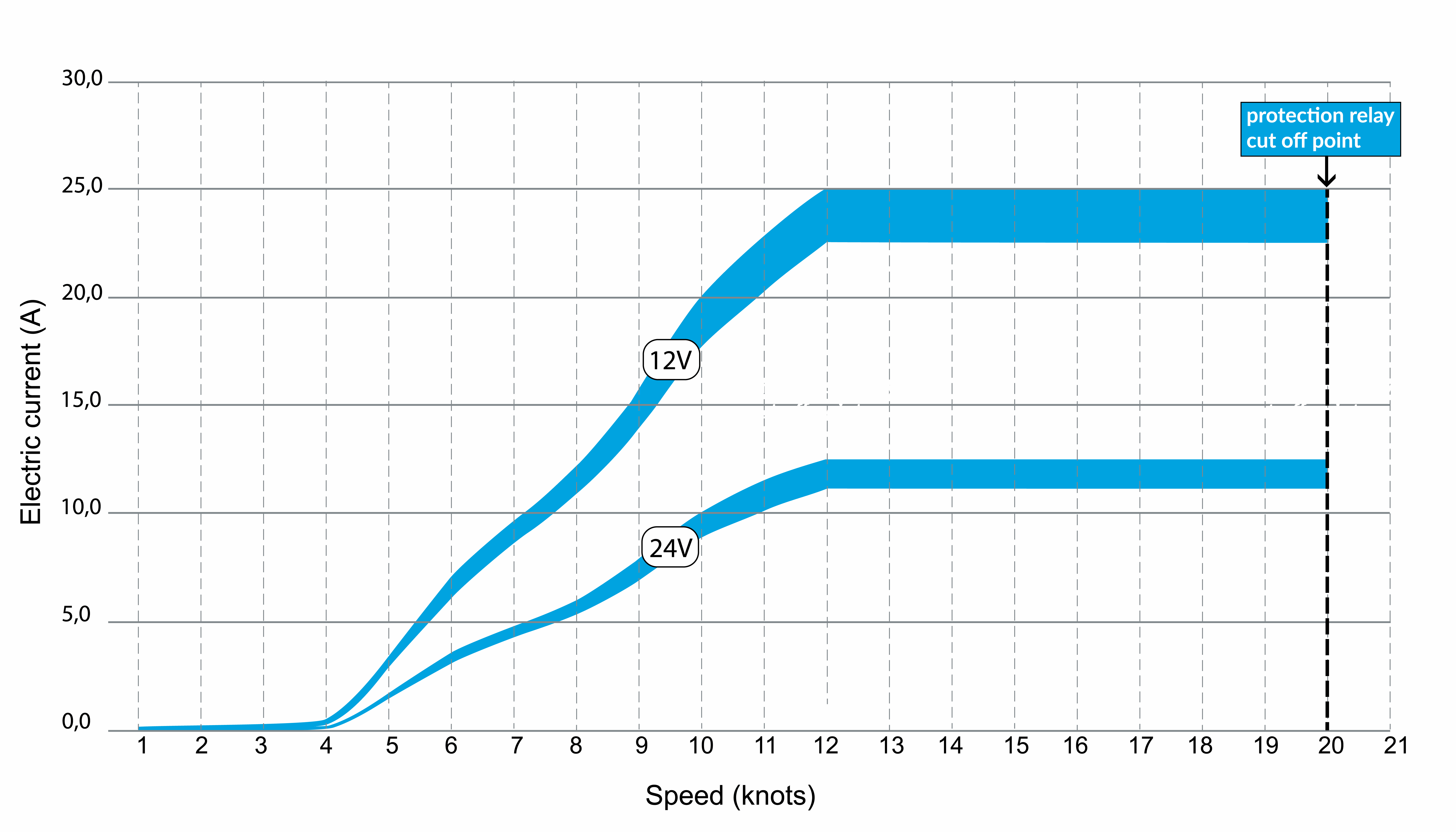

Electric current of the Remoran Wave 3GD - hydrogenerator at different speeds in 12V and 24V systems

We will deliver to EU countries (Netherlands, Belgium, Bulgaria, Span, Ireland, Italy, Austria, Greece, Croatia, Cyprus, Latvia, Lithuania, Luxembourg, Malta, Portugal, Poland, Romania, Sweden, Germany, Slovak, Slovenia, Finland, Denmark, Czech, Hungary, Estonia) and to UK, Switzerland, Norway. If you would like to buy our products to other locations than mentioned above please contact our Sales for available delivery methods and prices. More about shipping: https://remoran.eu/legal/

Check also our local Distributors. You can find the link to our distributors list from the front page.
