Remoran Wave 3GD

https://shop.remoran.eu/web/image/product.template/16/image_1920?unique=2b3f265

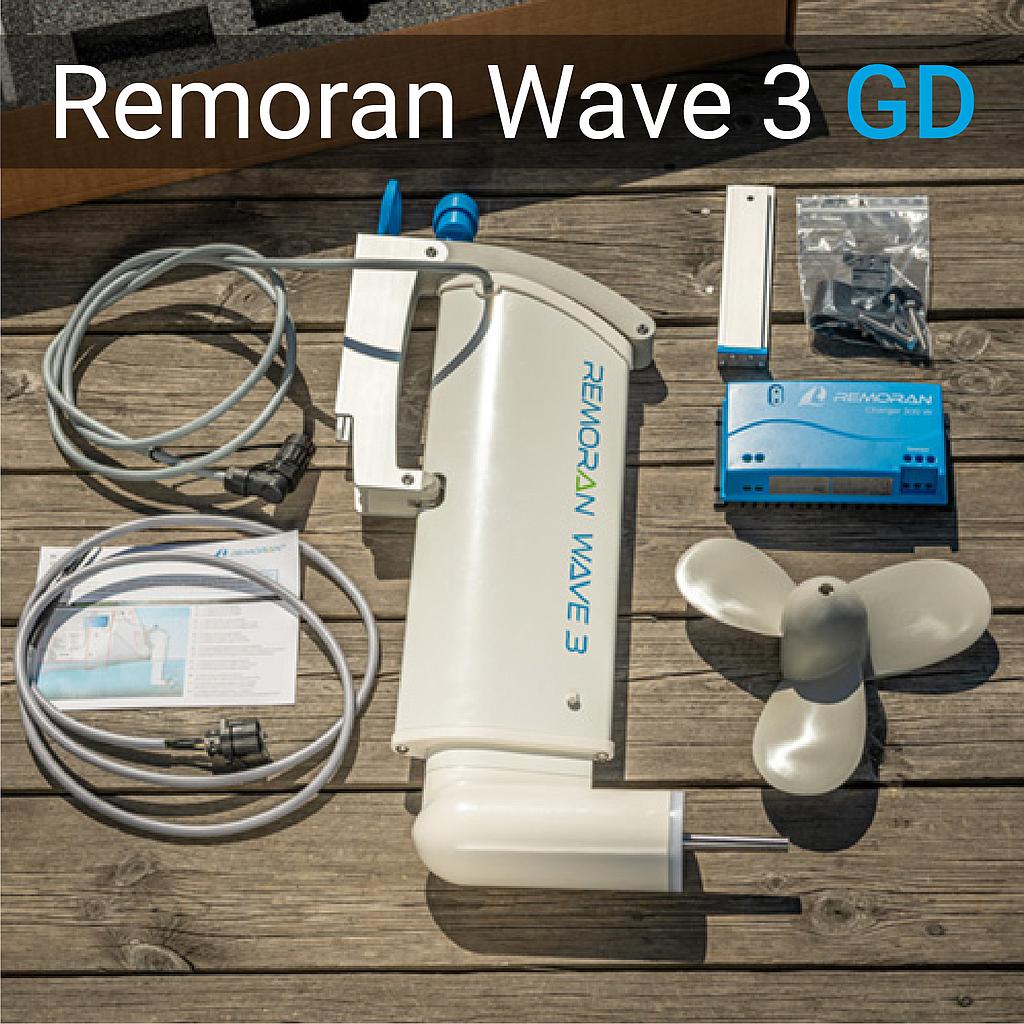

Remoran Wave 3GD sales package
Sailboat's optimal speed range: 5-15 knots
Includes outboard unit, charger, 20,6cm long rail, turbine and
mounting accessories.
Warranty 2 years

Custom order, delivery time approximately two weeks.

2,950.00 € 2950.0 EUR 2,950.00 € VAT 24%

2,379.03 €

2,379.03 € 2,379.03 € without taxes

Not Available For Sale

This combination does not exist.

The final price and the VAT of the Product are determined by country of delivery and are displayed before the order confirmation.

Contact Us

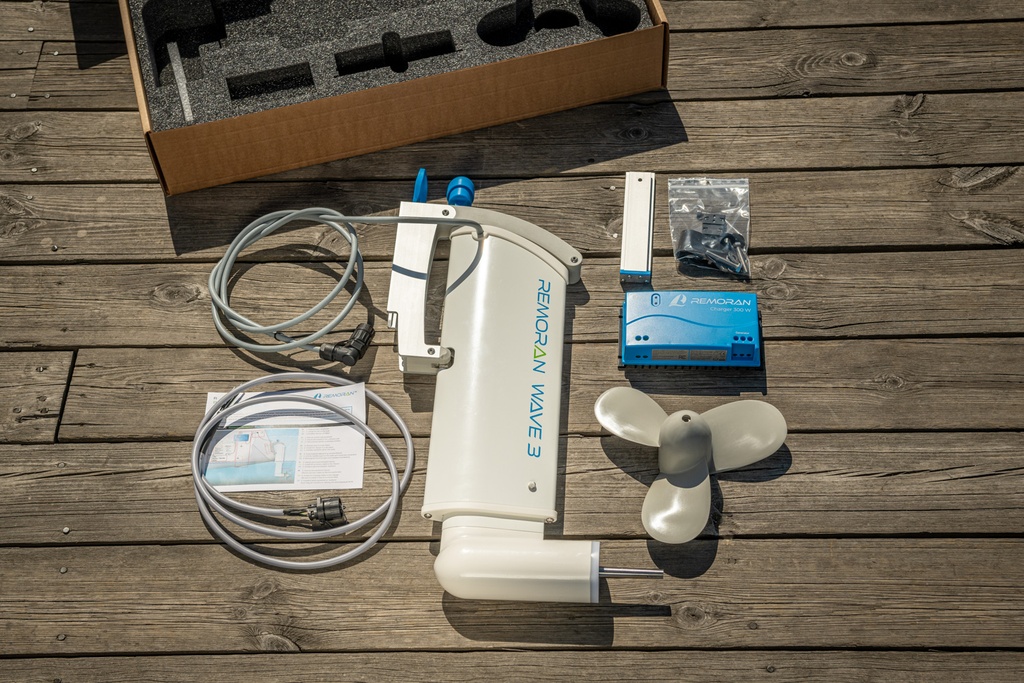

Remoran Wave 3GD includes

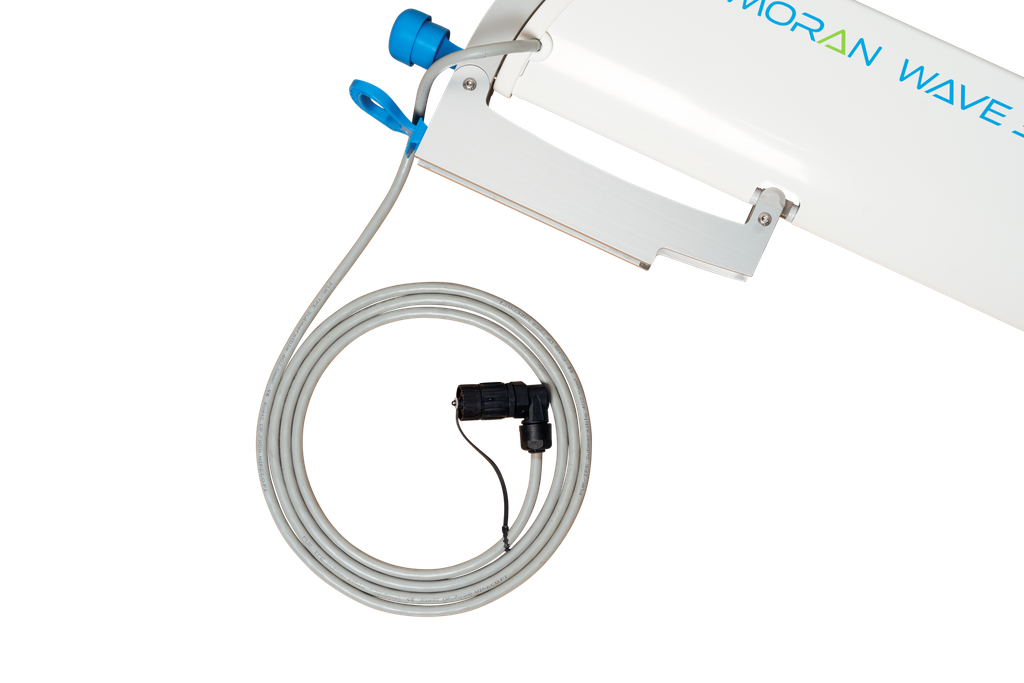

  • Remoran Wave 3GD outboard unit with fixed cable (2m), female connector and cap
  • Remoran Charger GD 300W -electronic charger
  • Generator cable 2m with male connector and cap
  • Mounting rail
  • Mounting accessories kit
  • Ferrite filter
  • Mounting instructions
  • Warranty 2 years

Weight: 11 Kg
Dimensions: 774 mm x 445 mm x 135 mm

Technical Details



Remoran Wave 3GD Outboard unit

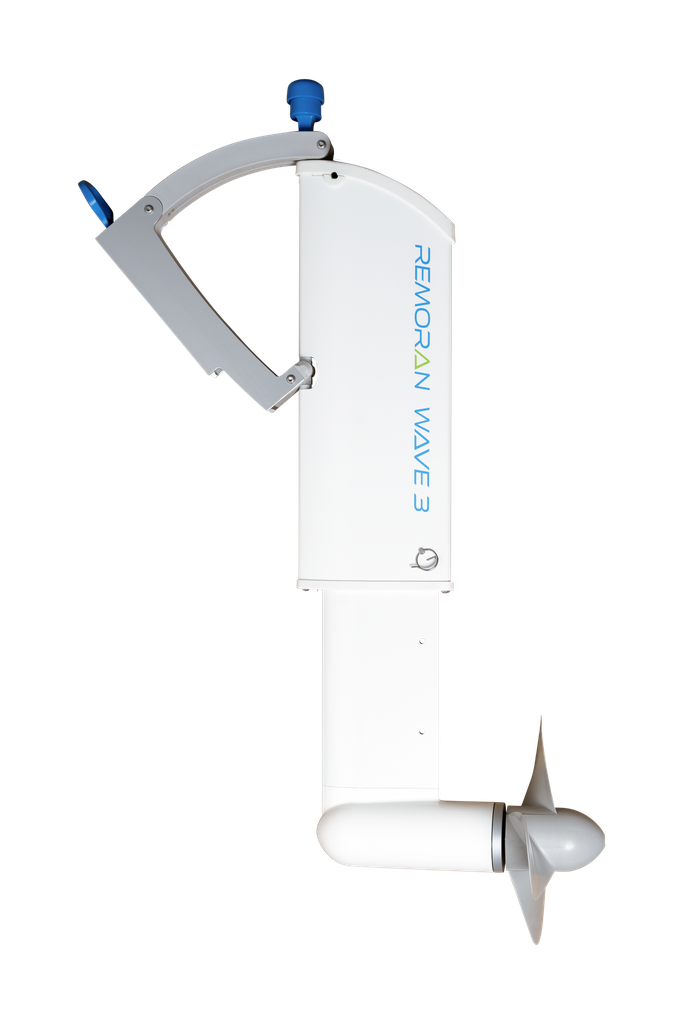

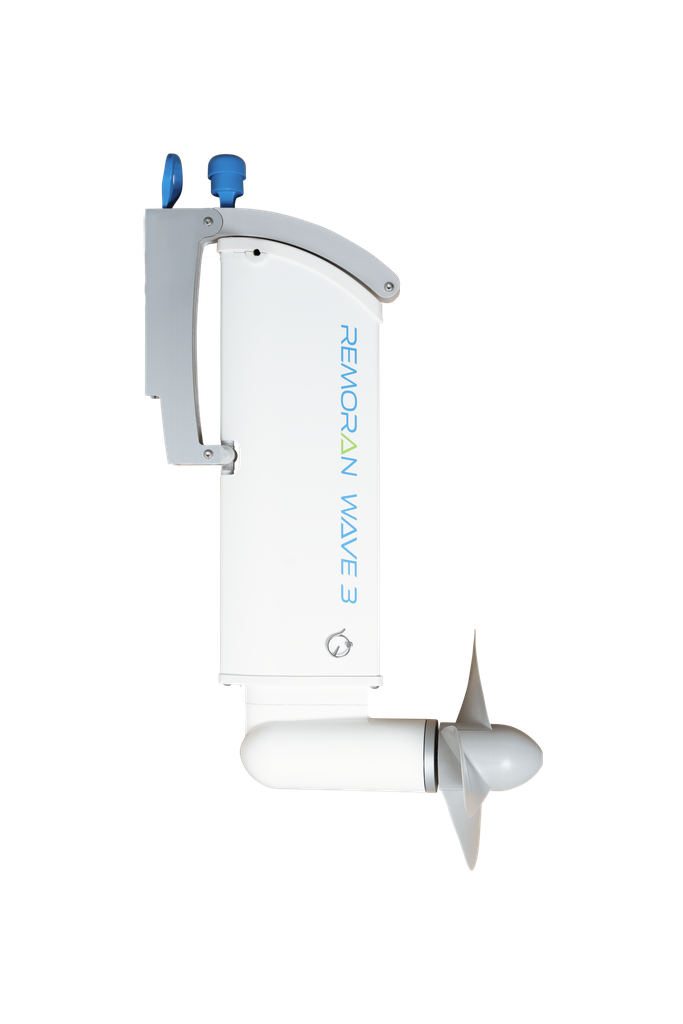

Length of outboard unit
680 - 980 mm
Weight of outboard unit7,5 kg
Maximum operation speed
20 knots*

* Charger damage may occur at speeds greater than stated unless Protection Relay PR-01 is fitted.

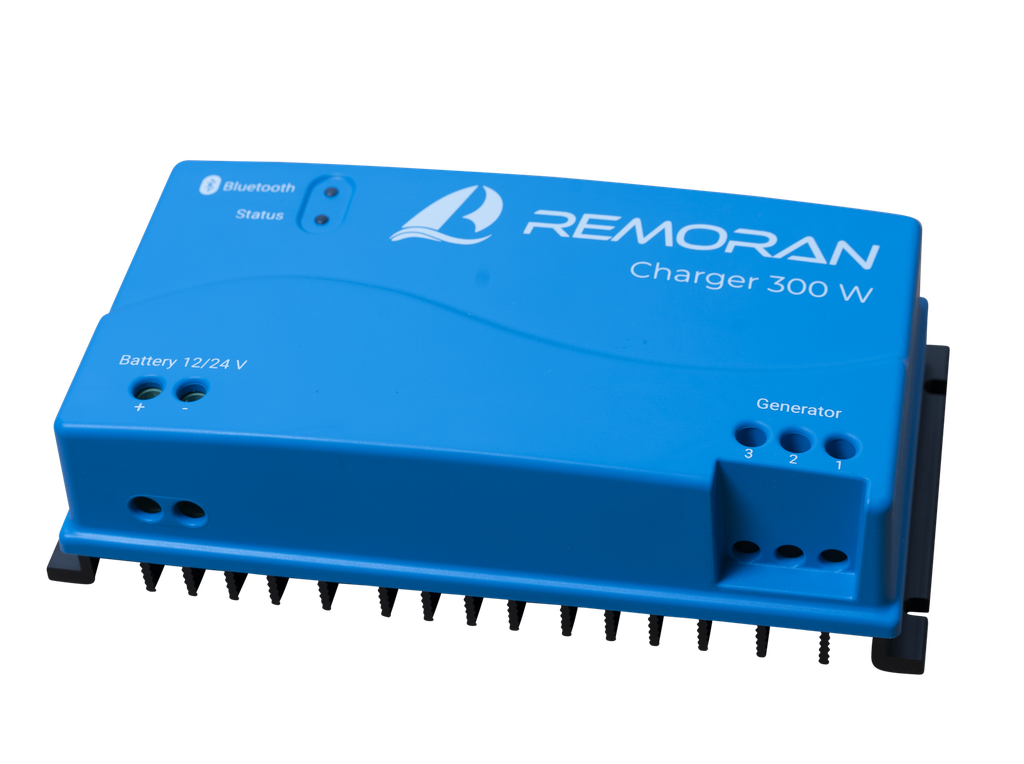

Remoran Charger GD 300W

Electronic features:
Maximum allowable input voltage
35VAC (3-phase)
Output voltage
12V/24V
Output current
max 25A
Output powermax 300W
Standby power consumption
20mA
Operating temperature range
 -10⁰C - +55⁰C
Compatible batteries
Pb, AGM, Lithium
Charging data collection
Power, temperature, RPM etc.
Bluetooth communication
Bluetooth low energy
Mechanical features:

Dimensions
53 x 203 x 105 mm
Weight
620g

Installation



For more information on installation, see the user guide. You can find it on our website.

Performance



 Power of the Remoran Wave 3GD - hydrogenerator at different speeds
Power at different speed


Electric current of the Remoran Wave 3GD - hydrogenerator at different speeds in 12V and 24V systems

Electric current at different speeds
